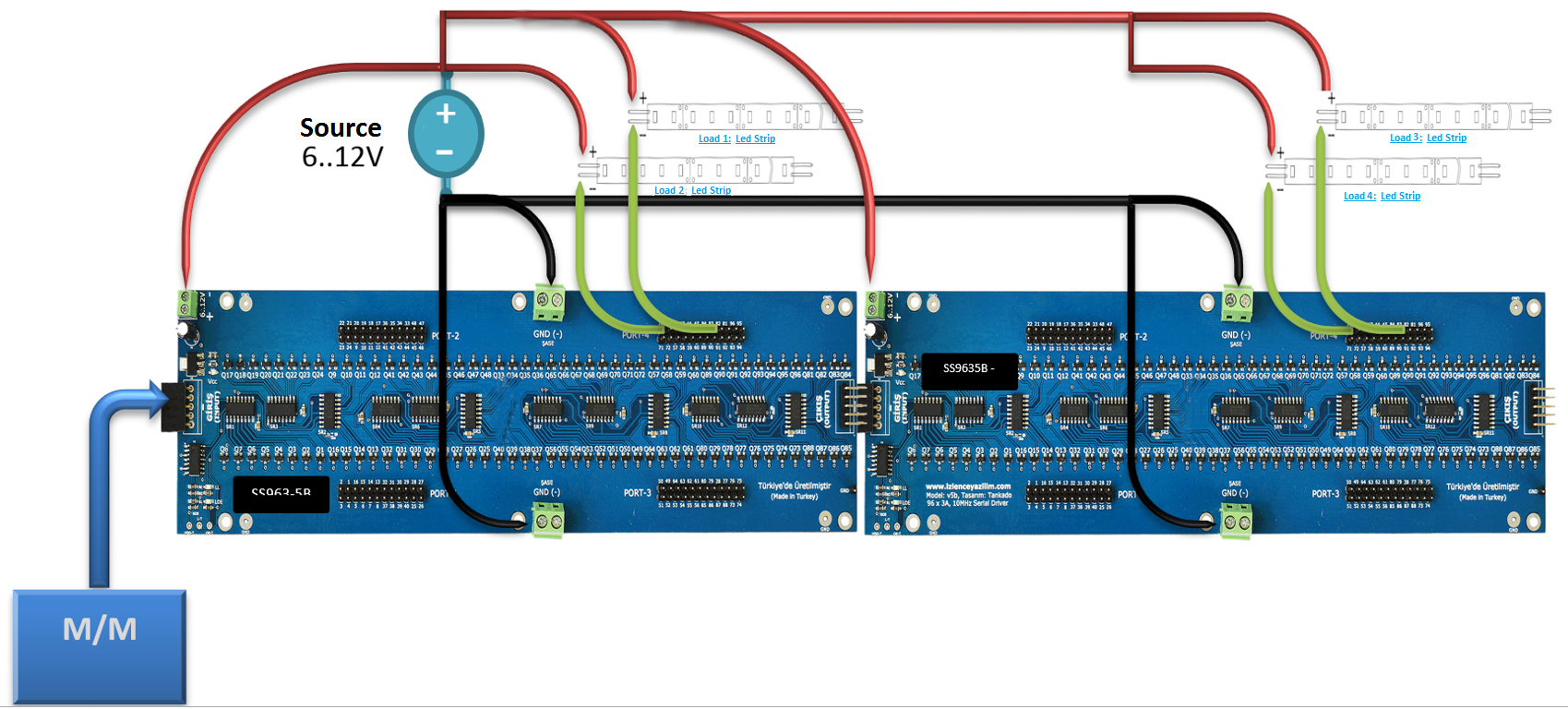

The number of outputs can be increased by connecting the cascade connection with the SS963 input and output control connectors. Up to 100 SS963 connections can be connected and controlled by a single microcomputer and microcontroller system. As can be seen from the above connection diagram; the anode of the source is connected to the anode of the SS963's power supply terminal (B) and the cathode source (minus pole) is connected to the cathode terminal of SS963’s (E, F) earth terminals.
The output frequency to be obtained in the cascade connection is divided in each cascade. The output frequency, which is normally 260KHz, drops to 130KHz when these 2 cards are connected.
Make sure that the connectors which are providing the inter-card connections (A and D) in the cascade connected correctly and tightly interlocked. In such cases, it will be suitable to mount the cards on a fixed floor with screw holes.
